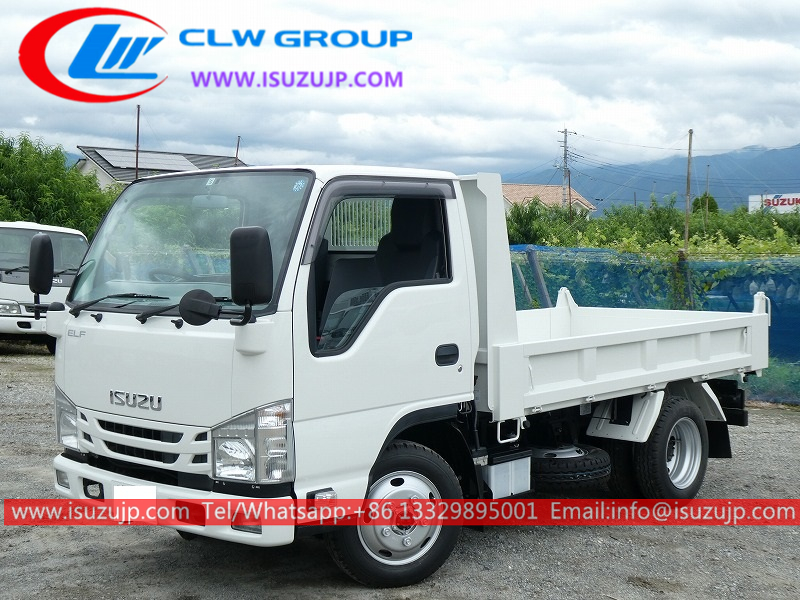

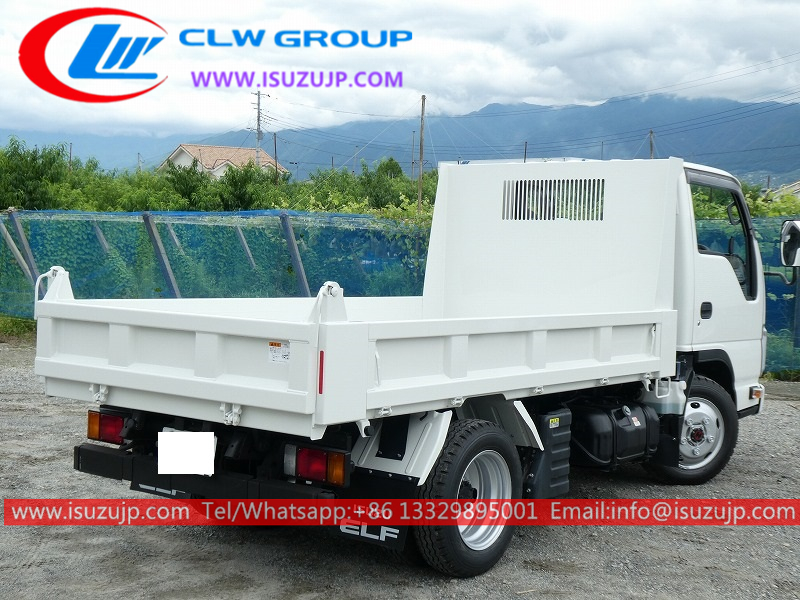

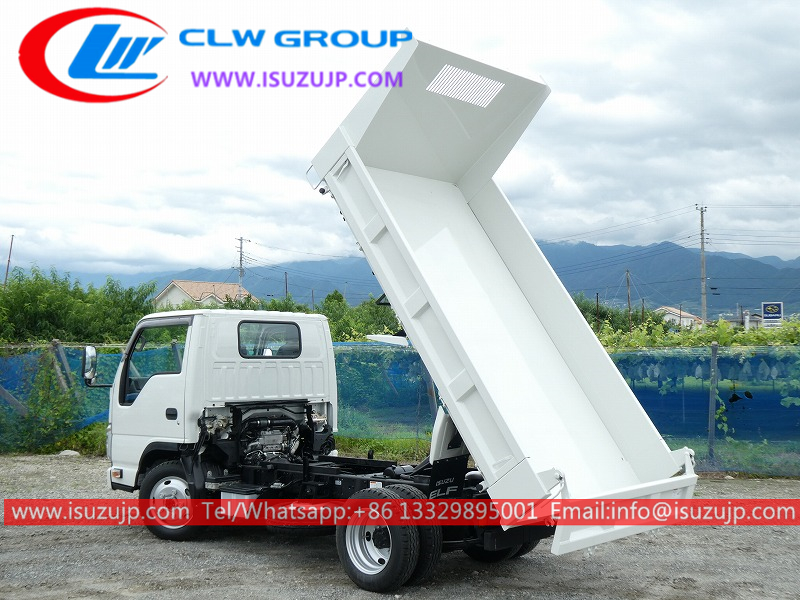

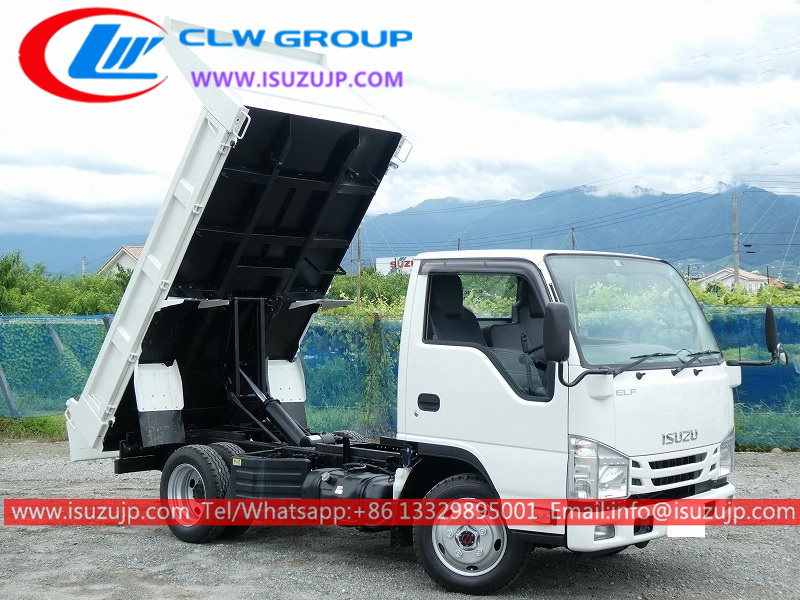

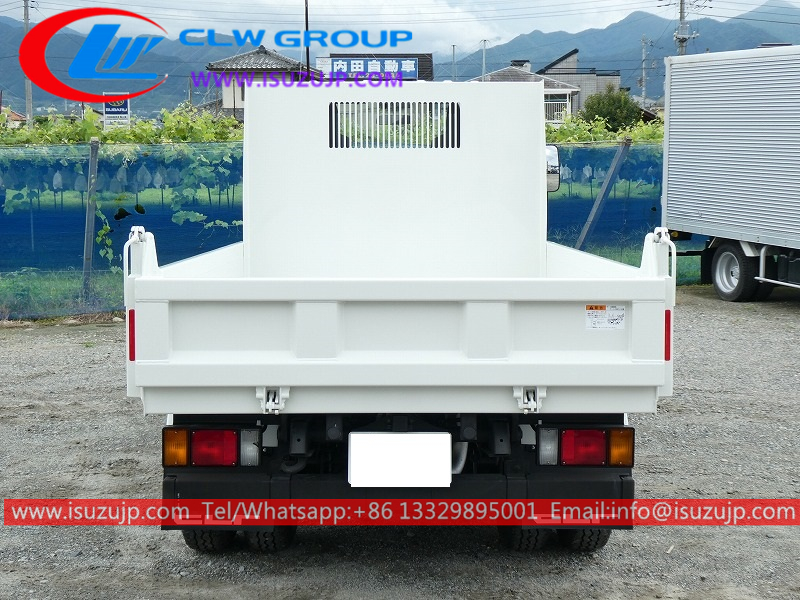

China Hot sale mini Dump Truck With ISUZU 100P Chassis

New Cabin

The new cabin model is adopted front headlight follow-up steering technology,new 100P cabin is more beautiful, confortable and safe.

New Power

ISUZU world-leading 4KH1CN-type brand new diesel engine with fully-electronic precise control and high-pressure common rail is employed, with stronger power, lower oil consumption, better oil adaptability and better low-temperature starting property: The new 4KH1CN engine, in line with the high quality of the ISUZU 4KH1 engine, matches the world-class Bosch diesel all-electronic precision control high-pressure common rail injection system. The system has high injection pressure and can improve the visible pollutant emission of the engine. Multi-injection of electronic injectors, precise and precise injection of diesel fuel to improve engine noise and vibration. Supercharged intercooling technology,SCR Post processing system. The engine has strong power, low fuel consumption, reliable and durable.

More environmentally friendly

Qingling ISUZU Trucks have achieved low pollution and low fuel consumption throughout the life cycle, and the performance of the whole vehicle is simultaneously improved, the noise is lower, the jitter is smaller, and the vehicle is quieter and more comfortable.

More economical (fuel efficient, urea)

Low fuel consumption, compared with other vehicles of the same load capacity, fuel economy 10%-15%; high reliability, maintenance costs low.

Stronger oil adaptability

Taking full account of user's conditions of use, matching development, improved the adaptability of oil products.

China Hot sale mini Dump Truck With ISUZU 100P Chassis

Vehicle Parameters
Vehicle Model:
QL10909KARY
Overall Dimension(L x W x H)
6980*2170*2350mm
Curb Weight:
2970Kg
GVW:
9390Kg
Wheelbase:
3815mm
Drive Type:
4x2
Engine
Engine Model:
4HK1-TCG40
Engine Power:
139(kw)
Delivery Capacity:
5193(ml)
Horsepower:
189PS
Transmission
Transmission:
MLD-6Q
Forward Gear:
6 Speed Gear
Backward Gear:
1 Speed Gear
Seats
Front Seat:
3
Chassis
Front/ Rear Wheel Distance:
1680/1650mm
Front/ Rear suspension:
1110/2055
Axle Loads:
3150/6240
Tires:
7(including spare tire)
Tire Model:
8.25R16 14PR
Configuration:
1
Power Steering
2
AC
3
Retro-reflective Marking
4
ABS
5
Free Maintenance Battery
6
Radial Tire
Top Parameter

Dumper Capacity:
6.5m3
Box Inside Dimension(L x W x H)：
4000x2000x800mm
Cylinder：
Middle Lift, Single hydraulic Jack
Thickness of Dump body：
Bottom 4 side 3
